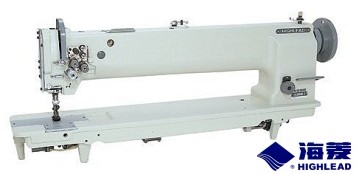

GC20698-1
SINGLE NEEDLE and GC20698-2 TWIN
NEEDLE LONGARM
COMPOUND FEED LOCKSTITCH MACHINE
Based on our very
successful GC20618-1 and 2 models and the MITSUBISHI LU2-4400-BOB machines,
This is our LONG ARM version. Available Single or Twin Needle in
all Needle Guages.
Very Popular in TENTS SAILMAKING, PARACHUTES, HOT AIR BALLOONS &
MICROLIGHT WINGS
Manufacture. Also used n the QUILTING TRADE and
GARDEN & PATIO FURNITURE & other Industries
where Bulky Work Needs to be sewn.
FULL NEEDLE & COMPOUND FEED - TRUE WALKING FOOT FOR
DIFFICULT TO SEW ITEMS
Powerful even feeding of the workpiece,
Needle, Feed Dog and Alternating
Presser all contribute to the transport of the Item being sewn, thru the
machine.
Can also be Modified to Standard Needle Feed System if
Required.

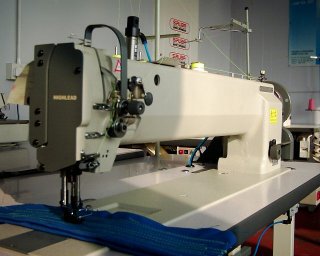

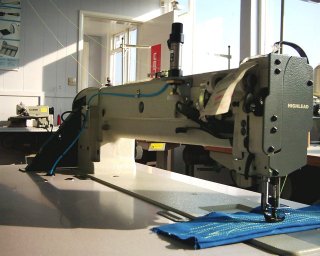

MASSIVE 635mm WORKSPACE
TO RIGHT OF NEEDLE
Ideal for sewing large items such as Tents, Lorry Tarpaulins, Bouncy Castles,
Soft
Play Equipment and Furniture Covers etc. Widely Used in Aviation &
Defence Industries.
INTEGRAL BOBBIN WINDER IN CENTRE OF ARM
Bobbin Winder is placed within easy reach of Operater for Quick Bobbin Changes.
Large
Hook holds 2.5 times thread over a standard Machine. Ideal for heavy threads.
HIGH SPEED - LONG STITCH MACHINE
Upto 2000 stitches per minute (dependant on application). Feed
mechanism can
deliver upto 9mm stitch in forward and reverse directions. Rotary Stitch Dial.
SAFETY CLUTCH
GC20698-1 & 2 machines are
fitted with Safety Clutch to protect the Rotary Hook in case
of contamination or Thread Jamming. Easy 'Push Button' Reset.
FULLY ADJUSTABLE ALTERNATING PRESSER HEIGHT
Correct Setting Eliminates Noise and Wear in the Machine.
Uses Standard SINGER 211 type Presser Feet and Accessories - Available
Everywhere.
PRICING
HIGHLEAD GC20698-1 LONGARM
Compound Feed Lockstitch Machine Complete on
Heavy Duty Single or Three Phase Unit Stand with Clutch Motor.
Treadle Operated
Footlifter. Cash and Carry £2195
+ vat
For Full Installation Price - PLEASE
CALL
OPTIONAL EXTRAS
- for Standard Machines
Pneumatic Presser Foot Lifting (PFL) £125
+ vat
Pneumatic 'Knuckle Reverse' Backtacking (MBT) £125
+ vat
EFKA DC Servo Needle
Positioning Please add £595
+ vat
OPTIONAL EXTRAS
- for EFKA Equipped
Machines
Pneumatic Automatic Presser Foot Lifting (AFL) £150
+ vat
Pneumatic Automatic Backtacking (ABT) £150
+ vat
Automatic Thread Trimming
(UBT)
£1025 + vat
HO
HSING DIGITAL Servo Needle Position Motor Available On This Machine
Call Us Today For More Information
